Printers | 2444AV/2444AVL

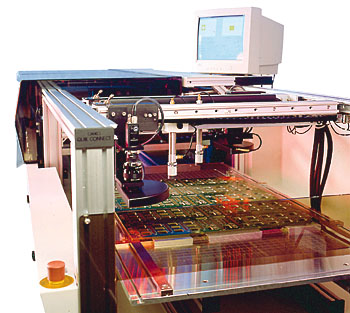

2444AV
2444AVL

Specifications:

2444AV

2444AVL

Repeatability

± .00025"

± .00025"

Maximum Frame Size

30.5" x 52" (up to 60" optional)

30.5" x 52" (up to 60" optional)

Maximum Print Area

24" x 44" (up to 52" optional)

24" x 44" (up to 52" optional)

Maximum PCB Size

24" x 48" (up to 54" optional)

24" x 48" (up to 54" optional)

Minimum PCB Size

6" x 6" (6" x 14" with vision correction)

6" x 6" (12" x 12" with vision correction)

Minimum PCB Thickness

0.020"

0.062"

Maximum PCB Thickness

1.0"

1.0"

PCB Edge Clearance

.187" (SMEMA Standard)

.187" (SMEMA Standard)

Squeegee Clamp Sets with Metal Blades

11.5", 16", 22"

11.5", 16", 22"

Programmable Squeegees and Stroke

Standard

Standard

Print Speed

0-12" Programmable

0-12" Programmable

Print Modes

Print, Print/Print, and Flood/Print

Print, Print/Print, and Flood/Print

Squeegee Pressure

Programmable

Programmable

Automated Loading and Unloading of PCB

N/A

Standard

Under Stencil Wiper Module with Vacuum

Optional

Standard

Precision Magnetic Universal Vacuum Tooling

Standard

Standard

Accu-Lign Series #3 Auto Vision

Standard

Standard

System Status Light Tower

Standard

Standard

SMEMA-Compatible Communications

N/A

Standard

Domestic Two-Year Limited Warranty

Standard

Standard

Installation and Training (Domestic)

Standard

Standard

Available Options

2444AV

2444AVL

Increase Maximum Print Area to 24" x 52"

Yes

Yes

Spare Parts Package

Yes

Yes

Rotary Vane Generated Vacuum with Holding Tank

Yes

Yes

Low Air Pressure Warning

Yes

Yes

Low Vacuum Warning

Yes

Yes

Sound Alarm for Machine Stoppage

Yes

Yes

Additional Pneumatic PCB Flatteners

Yes

Yes

Additional Squeegee Clamp Sizes with Metal Blades

Yes

Yes

Standard Utilities:

2444AV

2444AVL

Air Requirements

100 PSI @ 7 CFM

100 PSI @ 7 CFM

Electrical Requirements

220 VAC 50/60HZ 10 AMPS

220 VAC 50/60HZ 10 AMPS

Machine Dimensions:

2444AV

2444AVL

Overall Machine Dimensions

60" High x 134" Wide x 40" Deep

60" High x 134" Wide x 40" Deep

Shipping Weight

3,300 lbs.

3,400 lbs.

Conveyor Height

N/A

37"-39"

N/A=Not Applicable

Specifications subject to change without notice

5904-A #716 Warner Ave
Huntington Beach CA 92649
Phone: 714-903-8100

E-Mail:

2444AV 2444AVL
Specifications:	2444AV	2444AVL
Repeatability	± .00025"	± .00025"
Maximum Frame Size	30.5" x 52" (up to 60" optional)	30.5" x 52" (up to 60" optional)
Maximum Print Area	24" x 44" (up to 52" optional)	24" x 44" (up to 52" optional)
Maximum PCB Size	24" x 48" (up to 54" optional)	24" x 48" (up to 54" optional)
Minimum PCB Size	6" x 6" (6" x 14" with vision correction)	6" x 6" (12" x 12" with vision correction)
Minimum PCB Thickness	0.020"	0.062"
Maximum PCB Thickness	1.0"	1.0"
PCB Edge Clearance	.187" (SMEMA Standard)	.187" (SMEMA Standard)
Squeegee Clamp Sets with Metal Blades	11.5", 16", 22"	11.5", 16", 22"
Programmable Squeegees and Stroke	Standard	Standard
Print Speed	0-12" Programmable	0-12" Programmable
Print Modes	Print, Print/Print, and Flood/Print	Print, Print/Print, and Flood/Print
Squeegee Pressure	Programmable	Programmable
Automated Loading and Unloading of PCB	N/A	Standard
Under Stencil Wiper Module with Vacuum	Optional	Standard
Precision Magnetic Universal Vacuum Tooling	Standard	Standard
Accu-Lign Series #3 Auto Vision	Standard	Standard
System Status Light Tower	Standard	Standard
SMEMA-Compatible Communications	N/A	Standard
Domestic Two-Year Limited Warranty	Standard	Standard
Installation and Training (Domestic)	Standard	Standard
Available Options	2444AV	2444AVL
Increase Maximum Print Area to 24" x 52"	Yes	Yes
Spare Parts Package	Yes	Yes
Rotary Vane Generated Vacuum with Holding Tank	Yes	Yes
Low Air Pressure Warning	Yes	Yes
Low Vacuum Warning	Yes	Yes
Sound Alarm for Machine Stoppage	Yes	Yes
Additional Pneumatic PCB Flatteners	Yes	Yes
Additional Squeegee Clamp Sizes with Metal Blades	Yes	Yes
Standard Utilities:	2444AV	2444AVL
Air Requirements	100 PSI @ 7 CFM	100 PSI @ 7 CFM
Electrical Requirements	220 VAC 50/60HZ 10 AMPS	220 VAC 50/60HZ 10 AMPS
Machine Dimensions:	2444AV	2444AVL
Overall Machine Dimensions	60" High x 134" Wide x 40" Deep	60" High x 134" Wide x 40" Deep
Shipping Weight	3,300 lbs.	3,400 lbs.
Conveyor Height	N/A	37"-39"
